The process operation of mold production is a complex and fine process, involving design, manufacturing, debugging and

post-maintenance and other links. The following is a simplified mold production process operation guide:

First, mold design

1. Demand analysis: Communicate with customers to clarify the use, size, material, production quantity and other

requirements of the mold.

2. Design planning: According to the needs, design the overall structure of the mold, parting surface, gate location, etc.

3.3D modeling: Use CAD software for 3D modeling to ensure the accuracy and feasibility of the mold structure.

4. Simulation analysis: Use CAE software for simulation analysis, such as mold filling analysis, cooling analysis, etc., to optimize mold design.

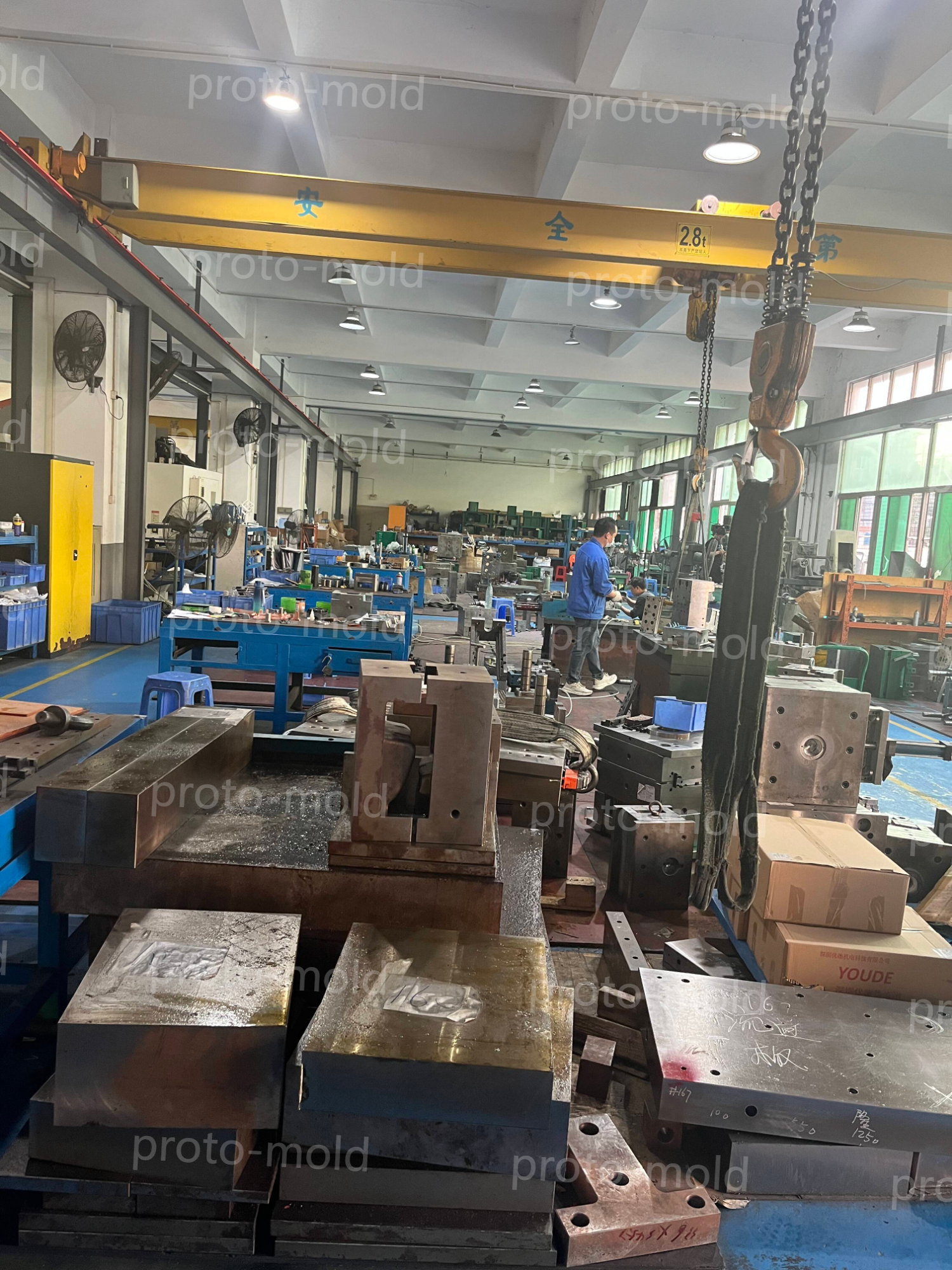

Second, mold manufacturing

Proto-mold solves all your mold design problems

Material Preparation: In accordance with the design requirements,   Proto-mold will choose the suitable mold materials,

such as die steel, aluminum alloy, and so on.
2. Processing and Manufacturing:
- Rough Machining: Utilize CNC machine tools for rough machining to eliminate the majority of the excess material.
- Semi-Finishing: Conduct further processing to approach the final size and shape.
- Fine Finishing: Employ high-precision machine tools for fine finishing to guarantee dimensional accuracy and surface quality.
3. Electrode Production and Electrical Discharge Machining (EDM): For complex shapes, it might be necessary to manufacture electrodes and carry out EDM.
4. Heat Treatment: Subject the die materials to heat treatment to enhance hardness and wear resistance.
5. Assembly and Debugging: Assemble the various components of the mold together for debugging to ensure that the mold can open and close normally and the positioning is accurate."

Third, mold debugging and mold testing

1. Install the mold: Install the mold on the injection molding machine or punching machine.

2. Set parameters: According to the requirements of the mold and product, set the parameters of injection molding or stamping.

3. Test mold: test mold, observe the molding effect of the product, such as size, appearance, quality, etc.

4. Problem analysis and solution: According to the test results, analyze the possible problems, such as flash, lack of material, deformation, etc., and make corresponding adjustments.

Fourth, mold acceptance and delivery

1. Quality inspection: carry out a comprehensive quality inspection of the mold to ensure that it meets the design requirements and production standards.

2. Customer acceptance: Invite customers to accept and confirm that the mold meets the production needs.

3. Delivery and training: Deliver the mold to the customer, and provide the necessary use and maintenance training.

Later maintenance and service

1. Regular maintenance: regular cleaning, lubrication and inspection of the mold to ensure long-term stable operation of the mold.

2. Troubleshooting: In the use of the mold, such as failure or damage, timely maintenance or replacement.

3. Technical support: Provide technical support and consultation for customers to solve the problems encountered in the use of molds.

The above is a simplified description of the operation of the mold production process, which may vary in actual operation depending on the specific product, equipment and technical requirements. Therefore, in the mold production, it should be flexibly adjusted and optimized according to the actual situation.
