Why Choose Vacuum Forming Molds for Rapid, Cost-Effective Production

2025-12-09 15:52 admin

Elevate Your Products with Custom Vacuum Forming Molds

Why Vacuum Forming Molds Win

Vacuum forming molds combine speed, precision, and cost efficiencyto bring product ideas to market faster and smarter.

The process heats a thermoplastic sheet until pliable, then uses vacuum pressure to form it over a cooled moldideal for large parts, lightweight structures, and complex geometries. Typical sheet thickness ranges from 0.60-13 mm,

with common materials including PS、ABS、PVC、PETG、PC、HDPE, selected for their strength and formability just above their glass transition temperature.

With microprocessor control and multi-cavity tooling, outputs can reach up to 1,500 parts per minute in

high-speed applications, while plug-assisted forming ensures uniform wall thickness for deeper draws and consistent quality.

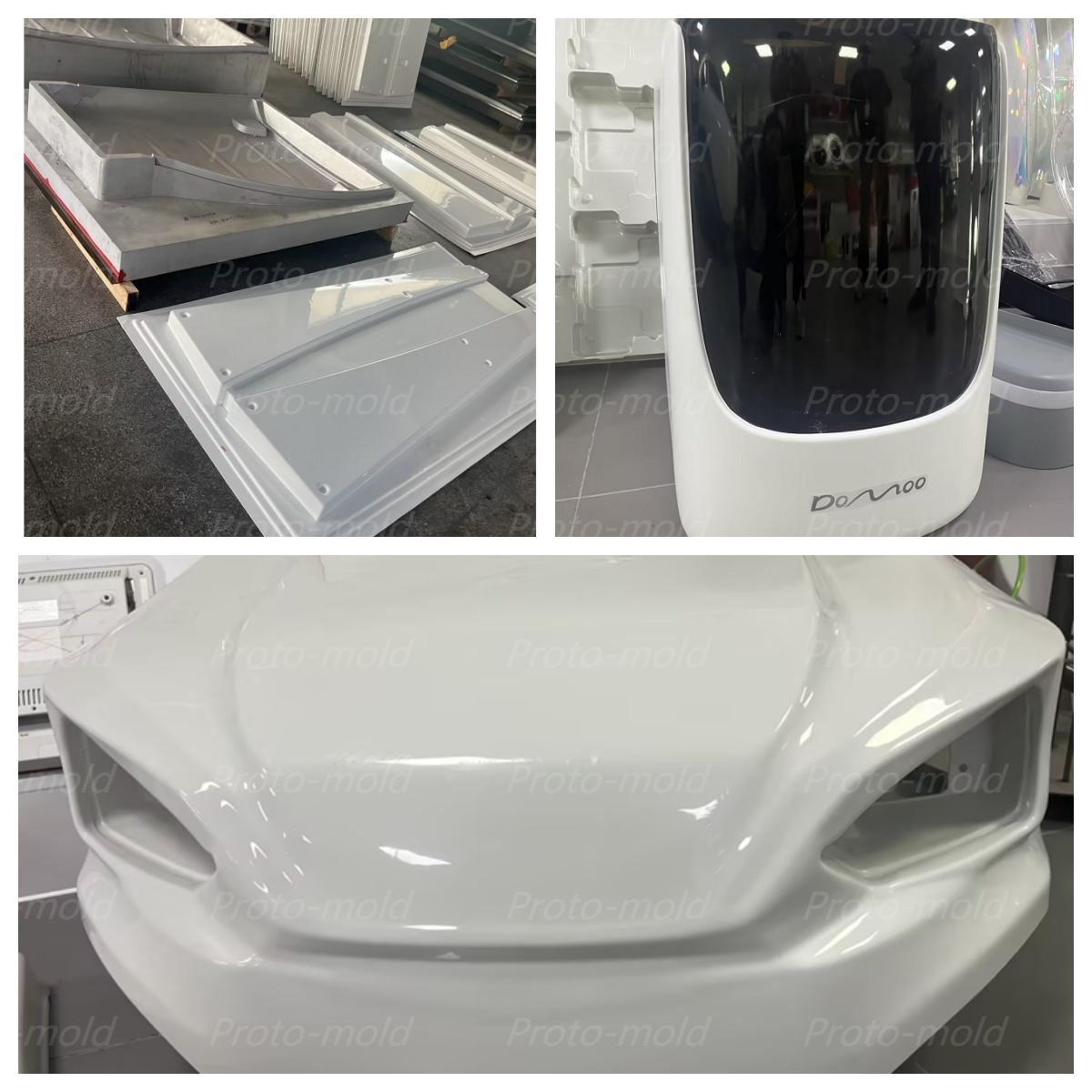

Where Vacuum Forming Molds Make the Difference

From protective retail packaging to durable equipment housings, vacuum forming molds serve a broad spectrum of industries:

Industry	Common Applications	Why Vacuum Forming
Packaging	Blisters, clamshells, trays, inserts	Fast tooling, design flexibility, crystal-clear display
Medical	Instrument trays, device housings, support surfaces	Cleanable materials, repeatable quality, FDA- compliant options
Automotive	Dashboards, door panels, trunk liners, wheel well covers	Lightweight parts, rapid design changes, cost-effective medium runs
Aerospace	Seat backs, cockpit panels, bins	Weight reduction, flame-retardant material options
Industrial Equipment	Machine covers, HVAC housings, pallets	Impact resistance, weatherproof finishes, large-part capability
Consumer Goods	Appliance panels, displays, point-of-sale	Custom textures, vibrant colors, scalable from prototype to production

These applications highlight why sectors from automotive to aerospace and medical continue to choose vacuum forming for both prototyping and medium-volume manufacturing.

Choosing the Right Mold Material

Selecting the right mold material is the key to performance, lead time, and cost control:

Mold Type	Lead Time	Durability	Surface Finish	Best For
Plaster/Gesso	2–4 days	Low	Matte	First article validation, low-volume
Epoxy Resin	3–5 days	Medium	Good	Complex shapes, water-wrinkle control
Electroformed Copper	3–5 days	Medium–High	Smooth/Transparent	Higher-end appearance, cosmetics, electronics
Aluminum Alloy (CNC)	Moderate	Very High	High precision, mirror polish	High-volume, tight tolerances, PET/PVC/PETG

Notes: Typical production tooling lead time is about 5–7 days. For high-volume consistency, many manufacturers prefer water-cooled aluminum molds with integrated bases, which reduce mold loss, enable free nesting to save material, eliminate water spotting by avoiding spray cooling, and use secondary heating for uniform sheet temperature and stable quality.

Design for Manufacturability and Sustainability

Uniform Wall Thickness: Use plug-assisted forming for deeper draws to control thinning and improve strength.
Cooling Control: Opt for water-cooled aluminum molds to reduce warping and shorten cycle times.
Material Selection: Match properties to purpose—choose PETG for clarity and toughness, ABS for impact resistance, PC for high strength and transparency, PVC for cost-effective forming and sealing.
Sustainability: Leverage recycled and bio-based thermoplastics, closed-loop scrap recycling, and energy-efficient heating to lower environmental impact.
Process Control: Implement AI-driven heating/vacuum optimization and automation for repeatable quality at scale.

Your Fast Track to Market

Concept to CAD: Share your 2D/3D files and target quantities; we’ll suggest the optimal material, mold material, and process parameters.
Rapid Prototyping: Validate form, fit, and function with fast tooling iterations and functional samples.
Production Ready: Scale from low-volume to high-volume with tooling upgrades, multi-cavity optimization, and in-line trimming.
Quality Assurance: Every part is inspected to your specifications; we provide material certifications and process documentation for full traceability.

Ready to start? Tell us your part dimensions, material preference, and target volume. Let’s engineer a vacuum forming mold solution that’s fast, precise, and built to last.
